Best Garage Shelving 2026: 10 Sets Ranked by Load Per Shelf

This one ranks first because its numbers agree with each other. Five shelves per bay at 200 kg each gives 1,000 kg per bay, and the spec table's maximum capacity field says exactly that. Three bays cost £133.99, or about £45 a bay, and 198 buyers have scored it 4.7 — the highest figure in this group of garage shelving sets.

In practice you get three 90 cm wide bays that join into a 270 cm run, or stand alone. Each bay can also be split into two 90 cm workbenches. The frames carry four layers of powder coating, and the MDF decks sit on centre steel supports. Shelf heights move without tools: the boltless design taps together with a rubber mallet.

The catch is MDF. In a damp or unheated garage the boards need varnish or sealant, and the listing says so itself. Also worth noting: the spec's 'Number Of Shelves' field reads 5, which describes one bay — a three-bay pack carries 15 boards. The 1,000 kg maximum capacity covers one bay, not the pack. If you want a single tall unit rather than a bank, look further down.

No other heavy duty garage shelving listing here claims 500 kg on a single shelf. Four shelves at 500 kg gives the 2,000 kg per bay the title advertises, and that is the highest per-shelf number in this article. It is 200 cm wide, the broadest bay here, and it costs £183.99.

The decks are 6.5 mm MDF on steel supports, held in profiled steel uprights and beams, powder coated blue. Shelf levels move every 50 mm. Assembly is the same boltless tap-together with a rubber mallet. As with every MDF deck in this list, damp conditions call for a varnish or sealant.

However, two fields on this page deserve a second look. The specification lists a shelf thickness of 50 millimetres while the description says the MDF is 6.5 mm — that is a table error, not a thicker board. Meanwhile the item weight is 50 kg, which is light for a bay rated at 2,000 kg. If you want to spread heavy loads across wider shelves rather than stack them on one, the 240 cm version below holds 450 kg a shelf.

This is the 240 cm wide version of the unit above. It gives up 50 kg of shelf load to gain 40 cm of width: 450 kg per shelf, 1,800 kg per bay, £219.99. That is the highest price in this list, and it shares its 4.5 score from 374 ratings with the narrower model.

By contrast with a three-bay pack, one bay this wide takes long items — timber, ladders, pipe — without a joint in the middle. The decks are the same 6.5 mm MDF on steel supports, adjustable every 50 mm, in a powder-coated steel frame with boltless assembly.

Either way, the price per centimetre of shelf is steep. If you mostly store boxes, the 200 cm version costs £36 less. Even so, the same table quirk appears: shelf thickness is listed as 50 millimetres against a 6.5 mm board in the description, and the item weight is 54 kg.

This is the value pick of the three-bay garage shelving packs. £119.99 buys three bays of five shelves, each shelf rated 200 kg, at 45 cm deep. The 60 cm deep version below costs £139.99 for the same load. Therefore the £20 buys depth, nothing else.

In practice, 45 cm is enough for boxes, tins, tools and most power equipment; it is not enough for a lawnmower deck or a large plastic crate. The bays run as one bank or three separate units, in a boltless garage shelving design that taps together with a mallet. Decks are 5 mm HDF, thinner than the 6.5 mm MDF on the larger BiGDUG units above.

That said, this page carries the commonest contradiction in the category. The spec field 'Number Of Shelves' reads 5, but the pack contains three bays and 15 boards. Its capacity field reads 'Minimum weight: 200 kg' while the maximum capacity field says 1,000 kg — one bay's worth, not three. Connectors for joining the bays are not included either.

This is the £139.99 version of the pack above. Everything matches — five shelves per bay, 200 kg per shelf, 1,000 kg per bay, 4.5 from 1,229 ratings — except the depth, which goes from 45 cm to 60 cm. The extra £20 buys 15 cm, which is the difference between storing a standard crate and not.

At 60 cm deep the bay takes plastic storage crates and most tool cases flat. The 5 mm HDF decks sit on steel supports and adjust every 50 mm. The frame taps together with a mallet and needs no bolts, so one person can build it.

Worth noting, this listing disagrees with itself more openly than its sibling. 'Number Of Shelves' reads 15, which is right for a three-bay pack, but the capacity field says 'Minimum weight: 3000 kg' while the maximum capacity field says 200 kg. Three bays at 1,000 kg each is 3,000 kg; the 200 kg figure is one shelf. Both numbers sit on the same page, and the 66 kg shipping weight is the honest one.

This is the only garage shelving unit here designed without cross bracing, so you can load it from either side. Four levels at 400 kg each is 1,600 kg across the frame, and the bay is 179.5 cm wide by 180 cm tall. It costs £155.99 and holds a 4.4 score from 74 ratings — the second-smallest review base in this list.

In theory the double-sided design suits a central island in a workshop, where you walk round it. The steel uprights are rust-proof and powder coated, and all four MDF shelves are height adjustable — adjustable garage shelving, in the plain sense that every level moves. There is no cross bracing, so it stands on its own feet and stays freestanding.

The catch is the table. The field under Weight Capacity reads 'Minimum weight: 0 g' — a placeholder, not a rating, and it flatly contradicts the 400 kg per level claimed in the title. At the same time, 'Weight Capacity Maximum' says 400 kg, which is one level, not the four-level total of 1,600 kg. With 74 ratings and a 10% one-star share, this one is worth checking in person before you commit.

The headline here is 4,200KG, and it is not a shelf rating. It is three bays at 1,400 kg each, which is what the bullet points say. Per shelf it is 280 kg, the second-highest figure in this list after the 500 kg BiGDUG unit. Three bays cost £149.99, about £50 each, and 525 buyers have scored it 4.2.

This is 5 tier garage shelving at 90 cm wide and 45 cm deep, with 8 mm MDF decks according to the description — the thickest boards claimed in this article. The frame is powder-coated steel and assembles with a mallet only, using the maker's glide-together joints. Bays stand alone or as a bank.

However, this listing contradicts itself twice. Its 'Item Weight' field reads 4,200 kg, which is the pack's combined load rating, not a weight — the same page states each unit weighs 27 kg. And the spec table lists a shelf thickness of 6 millimetres against the 8 mm MDF in the description. If you need one tall bay rather than three, you are paying for bays you will not fill.

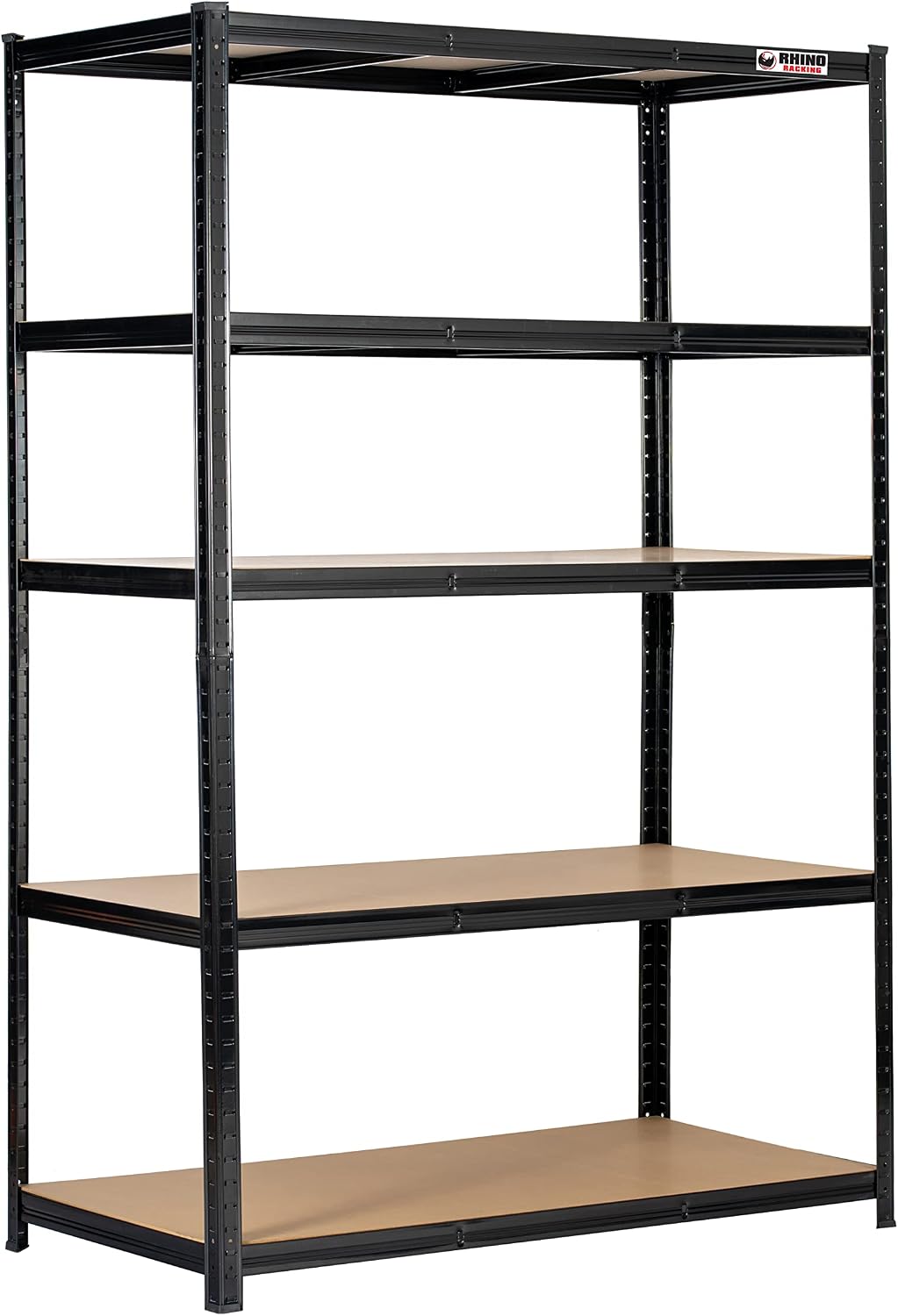

At £59.99 this is the lowest price in the article for a five-tier bay, and it is rated 200 kg per shelf, 1,000 kg per unit. What sets it apart is the spread: 1,225 ratings at 4.1, with 10% at one star against 61% at five. The top product here sits at 85% five-star.

This is metal garage shelving with a galvanised steel frame, a rust-resistant coating and reinforced feet. The boards are 4 mm MDF, the thinnest deck in this list. Five tiers of 120 x 60 cm shelves adjust in height, and the boltless frame arrives flat packed.

That said, 4 mm MDF limits what a shelf will take in practice: the 200 kg figure assumes an evenly distributed load, and one heavy item in the middle is a different case. With a 10% one-star share across 1,225 ratings, read the recent reviews before ordering, particularly if you plan to load it anywhere near its limit.

This one uses steel shelves, not MDF boards. Five tiers at 200 kg each gives 1,000 kg, and the unit stands 183 cm tall, 90 cm wide and 40 cm deep. At £89.99 with 4.4 from 146 ratings, it sits between the cheap Rhino bay and the three-bay packs.

For garage storage shelves, steel decks have one obvious advantage: no varnish, no swelling, no damp problem. The frame is powder coated and described as water and scratch resistant, and rubber foot pads protect the floor and add stability. Shelf heights adjust to suit the item.

Crucially, check the fields. 'Weight Capacity' reads 'Minimum weight: 600 kg' while 'Weight Capacity Maximum' says 1,000 kg and the description says 200 kg per shelf. And the shelf thickness field reads 36.6 centimetres, which is a data error — no shelf is that thick. At 40 cm deep this is the shallowest unit here, so measure your crates first.
